Casambi enabled blind actuator

• Blind actuator for roller shutter, blinds, awnings, ...
• Wireless controlled by Casambi
• Local control with external blind switch
• Casambi enabled wireless switches
• Rich timer features

Blind actuator Casambi


Casambi blind actuator for roller blinds / blinds / awnings. Automate your enviroment with Casambi ready sensors.

With your tablet or smartphone controlling and configuration such as control time functions is very convenient and easy. Safe operation, forget sticking relays thanks to built-in mutual locking.

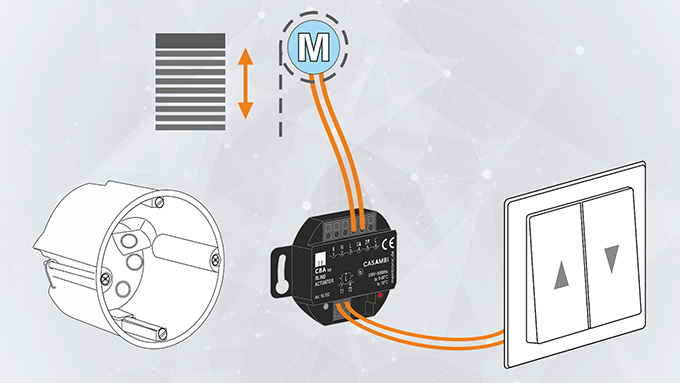

Quick installation due to a compact terminal, all internally wired for motor connection cable. Extended comfort functions such as longpress, toggle, scene and group functions.

Single or Group control possible. Adjust throught 0...100% slider for position and an extra slider for slat position.

Product features

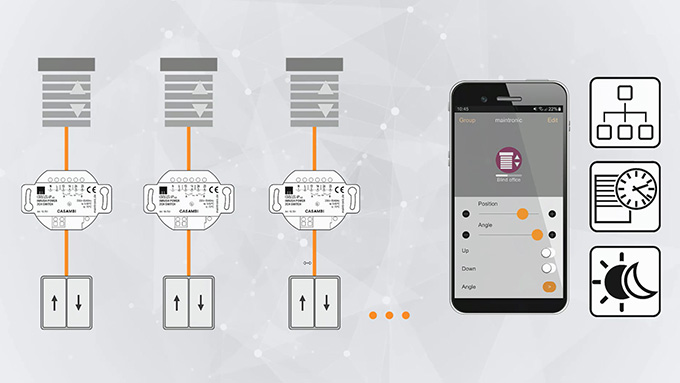

Group devices
Create groups for joint control.
Timer features
Run blinds with specific time.
Astro function
Drive the blind to sun times.
Secure motor control
Hard and software interlocked due to two 16A positively driven changeover relays.
Casambi enabled wireless switches
Wireless Switch for fixed installations.
Local control
Seperate output for external blind switch.

Product data CBA UP:

Blind actuator Casambi

 2 CH blind actuator

 Control: Casambi, local control

 Construction: Flush mouted housing

 Power supply: 130-240V AC 50/60Hz

 Dimensions: 46,5 x 70(51) x 30 mm


Part. No. 10.750
