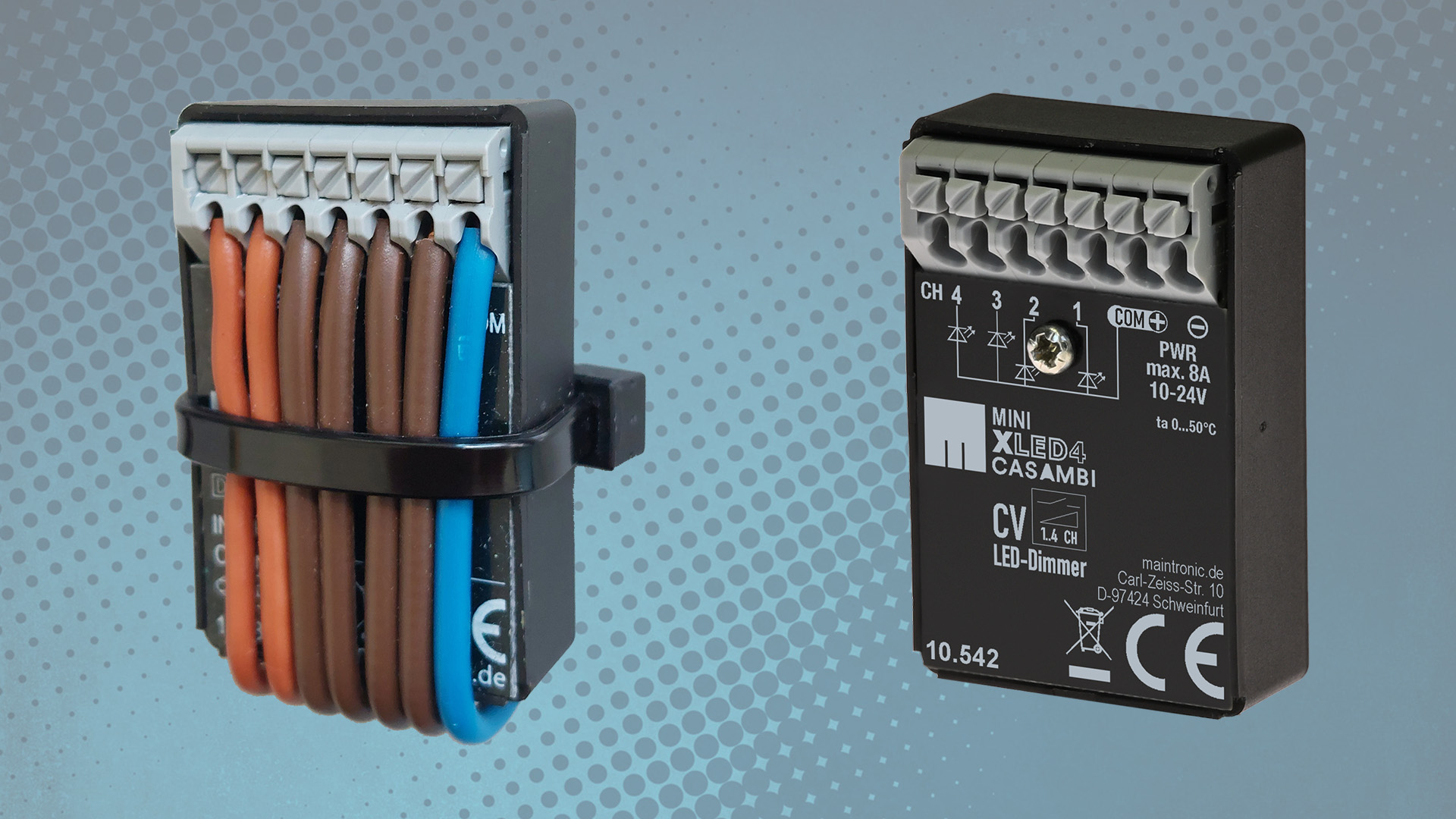

miniXLED4 CV Casambi LED Dimmer

• 1-4 CH LED-dimmer constant voltage
• Control with Casambi
• 2A / CH | 8A max. output current
• Rich diagnostic tools
• Plus Features: variable Fadetime and
  Dimmspeed, Soft-Off

Casambi LED Dimmer Constant Voltage

miniXLED4 CV

LED ballast for comfortable and flexible control of LEDs with constant voltage (usually LED strips) through a smartphone or tablet. Small housing or an easy installation in a flash mounted housing in within the lamp.

Casambi wireless operation

Casambi App automatically identifies the device and can be integrated into existing networks. All functions triggered by the buttons are individually configurable.

Operation modes

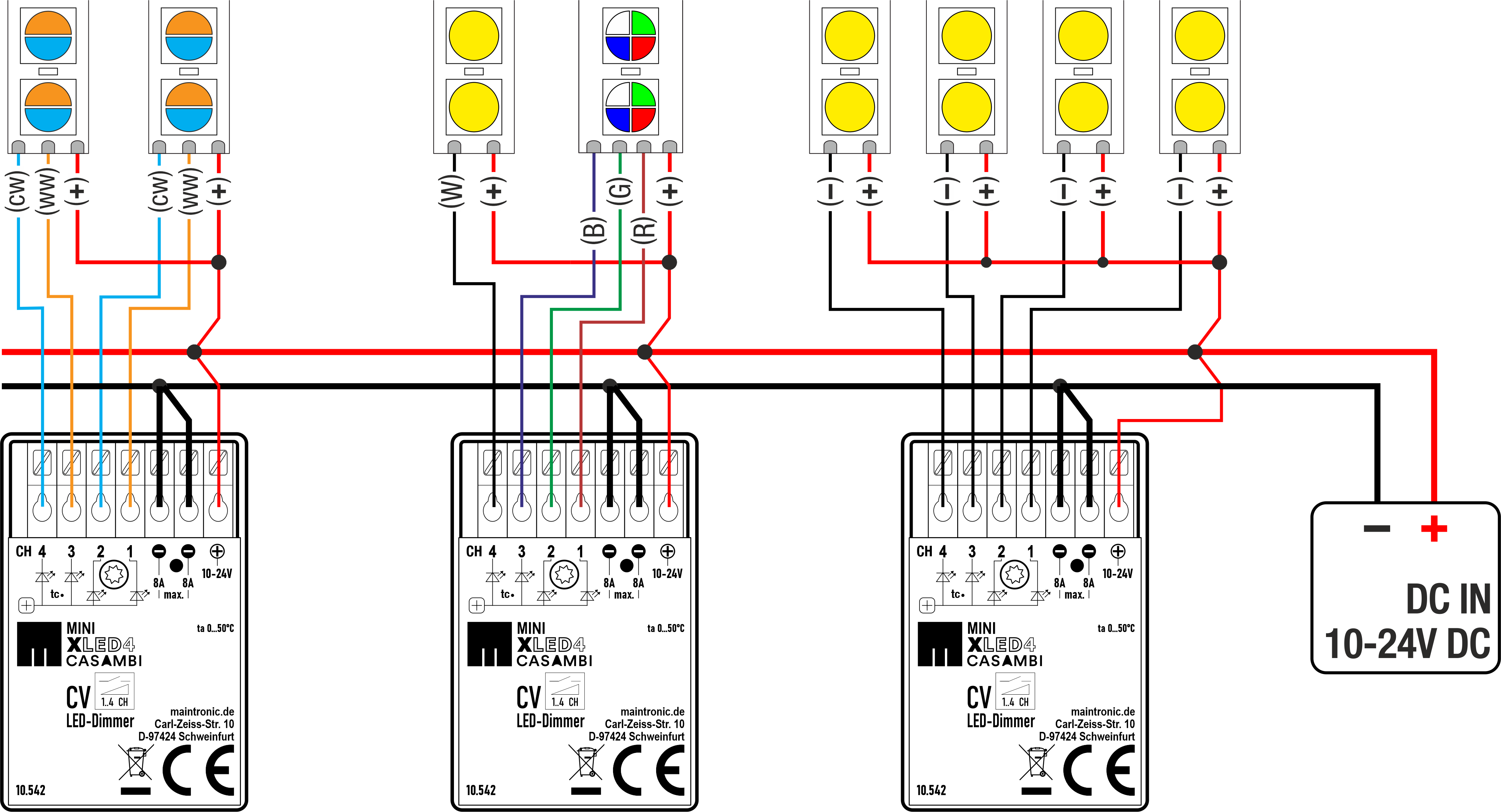

Casambi luminaire profiles and use cases: The device has different operating modes (so-called Casambi profiles) with the profiles the functionality and the parameters are determined. It is possible to operate the device in 1, 2 or 4 channel mode. Plus the additional specific modes for Tunable white and RGBW.


Channels could be linked together for a higher output current than 2A. With a maximum of 8A (24V DC). Linked-channels works as a single combined output.

Tiny dimensions

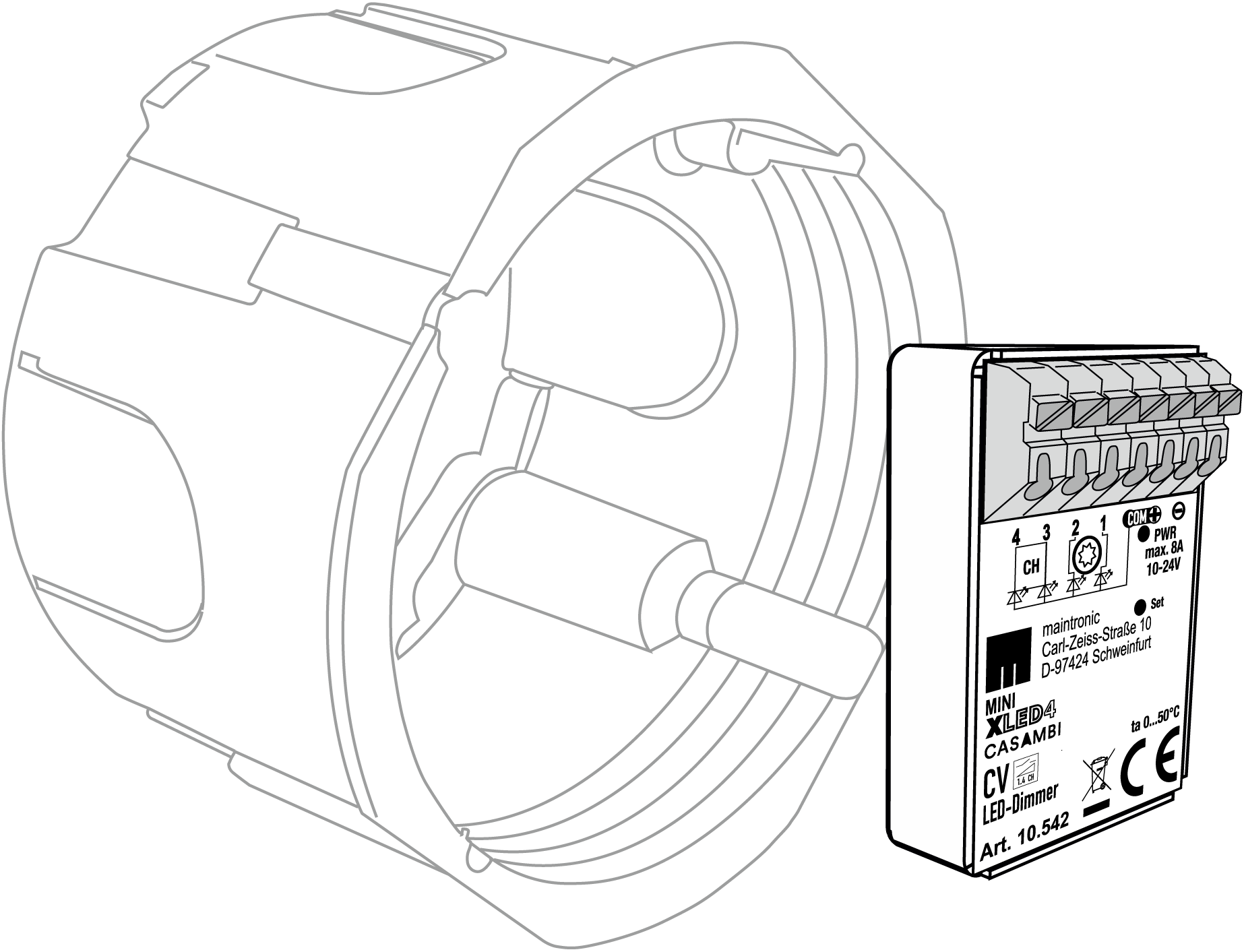

Due to the small dimensions the device can be installed very easily behind push-buttons or inside a luminaire installation.

Constant Voltage (CV)

The used power supply has to be pulse resistant and stabilized. Use a Power supply voltage according the rated voltage of the LEDs.

Build in protections

With the numerous protection circuits like Short circuit with auto restart, over temperature (derating), over current. The device is ready for challenging and industrial applications.

Casambi features


Group devices
Create groups for joint control.
Timer features
Create scheduled scenes.
Astro function
Activate scenes at sunrise and sunset.

Product data:

miniXLED4 CV Casambi

 1-4 CH LED-Dimmer Constant Voltage

 Control with Casambi

 2A / CH | 8A max. output current

 Input: 10...24V DC

 Tiny dimensions 44x29x16 mm


Part. No. 10.542 miniXLED4 CV Casambi
