Casambi input controller

• Casambi input controller
• 4-fold push-button-interface
• Casambi repeater
• Mains powered 100...240V AC

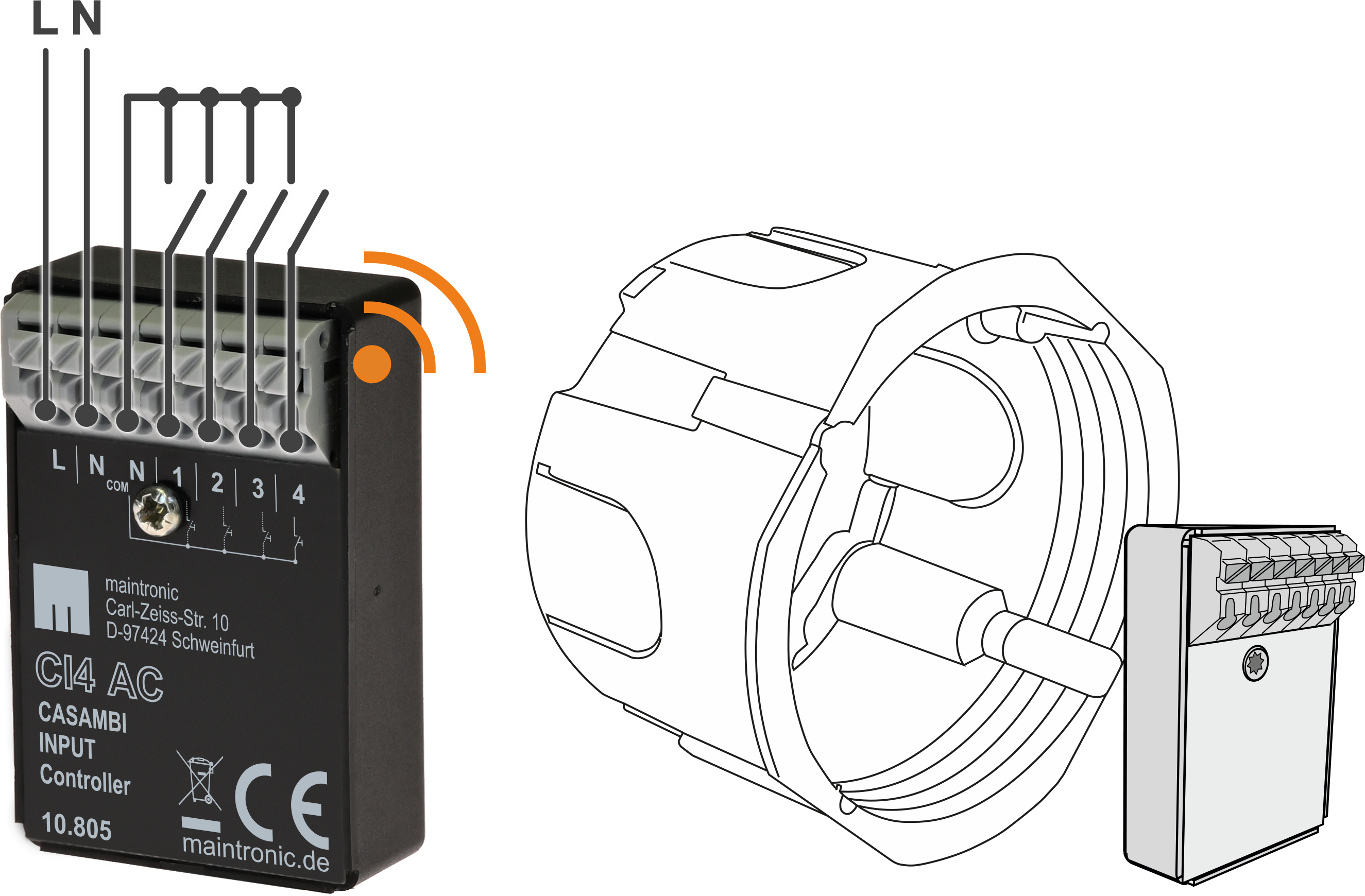

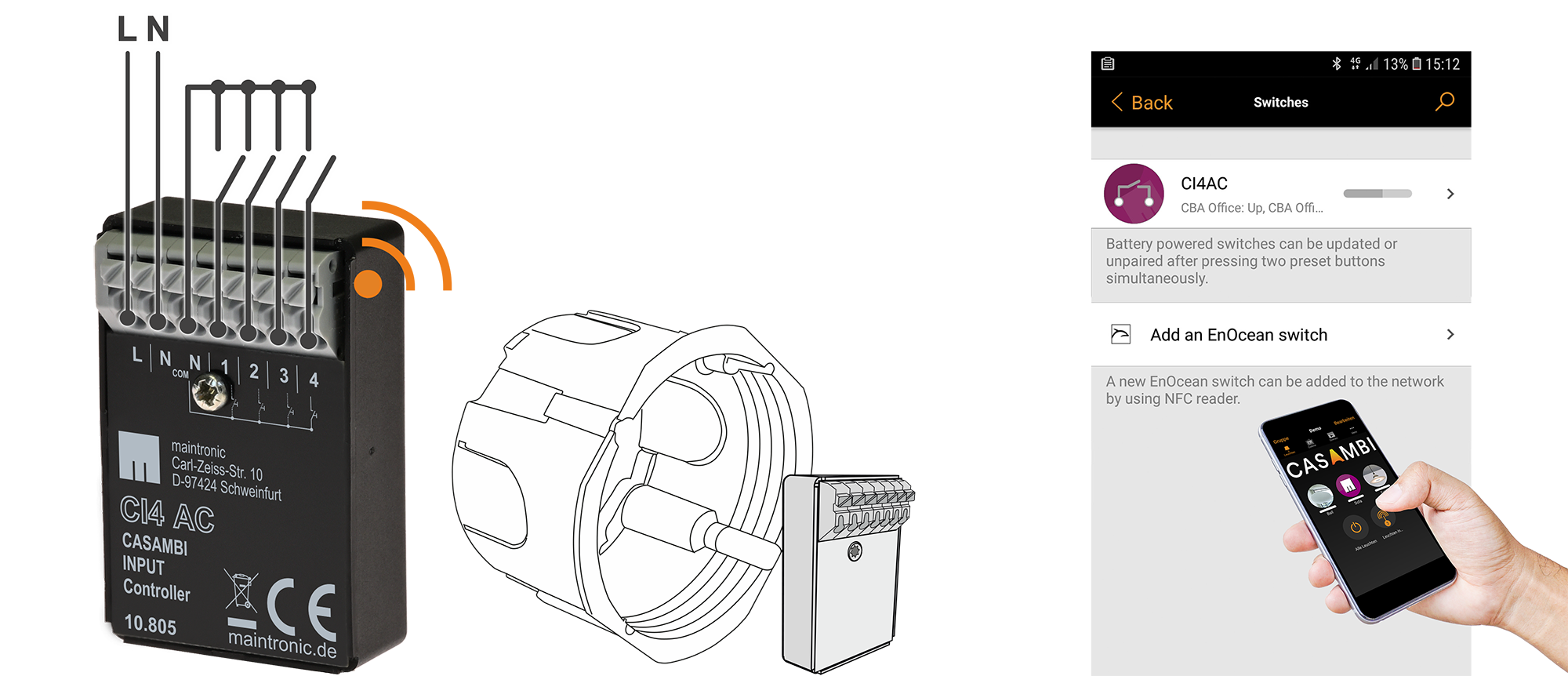

The CI4 AC is a Casambi push button interface

CI4 AC

This Casambi controller has 4 push-button inputs suitable for all mains voltage approved push-buttons of the well-known switch manufacturers. The device is operated with mains voltage, the potential of the push button inputs are also mains voltage.

Casambi wireless operation

Casambi App automatically identifies the device and can be integrated into existing networks. All functions triggered by the buttons are individually configurable.

Programmable inputs

All functions triggered by the buttons are individually configurable. The inputs have the same behaviour as a standard Casambi input.

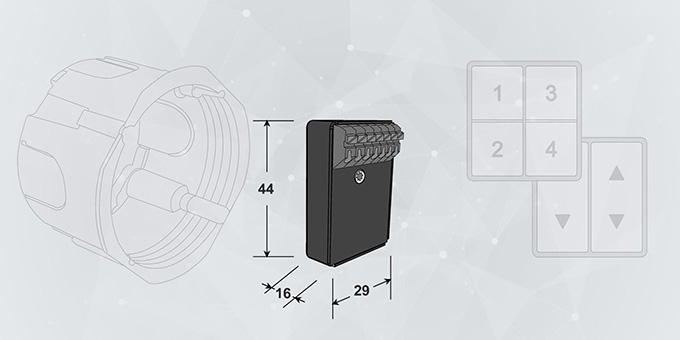

Tiny dimensions

Due to the small dimensions the device can be installed very easily behind push-buttons.

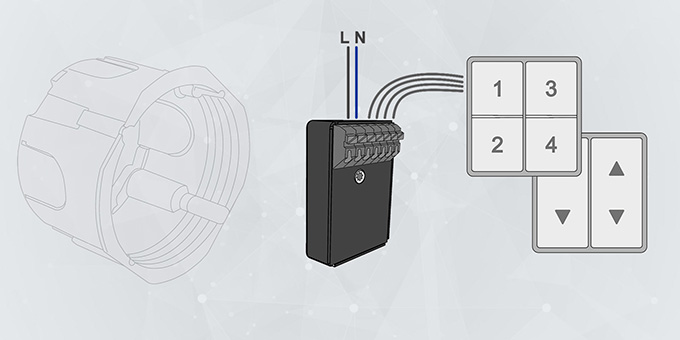

Easy installation

The installation of the input controller is very easy. Connect cable and place it in a flush-mounted housing or junction box.

Product data CI4 AC:

Casambi input controller

4-fold push-button interface

Tiny dimensions 44x29x16 mm

Casambi mesh net repeater

Mains powered

Part. No. 10.805

Downloads:

Datasheet download

Installation guide download

Produktlinks:

LED-Dimmer CV Casambi enabled

Retrofit Dimmer Casambi enabled

Jalousieaktor Casambi enabled

Schaltaktor Casambi enabled

Product pictures

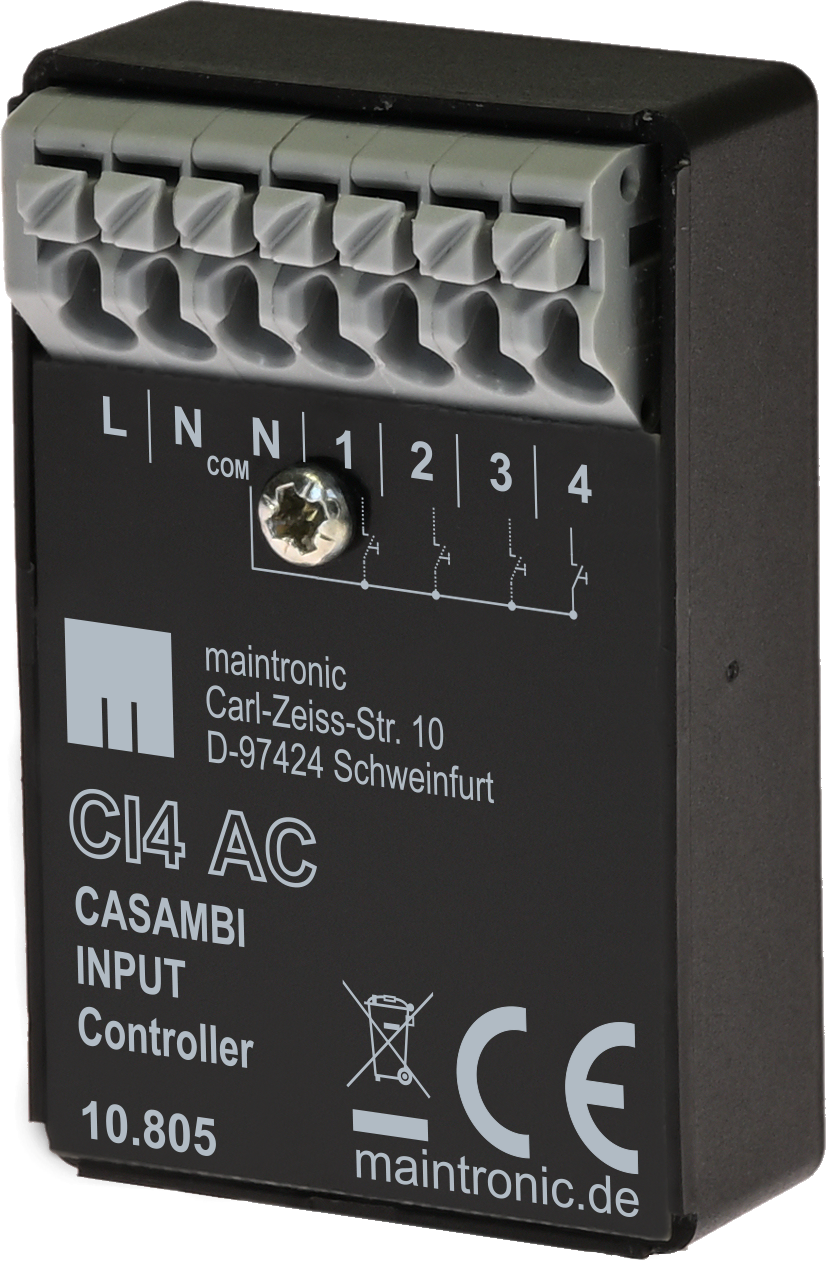

View front

Dimensions

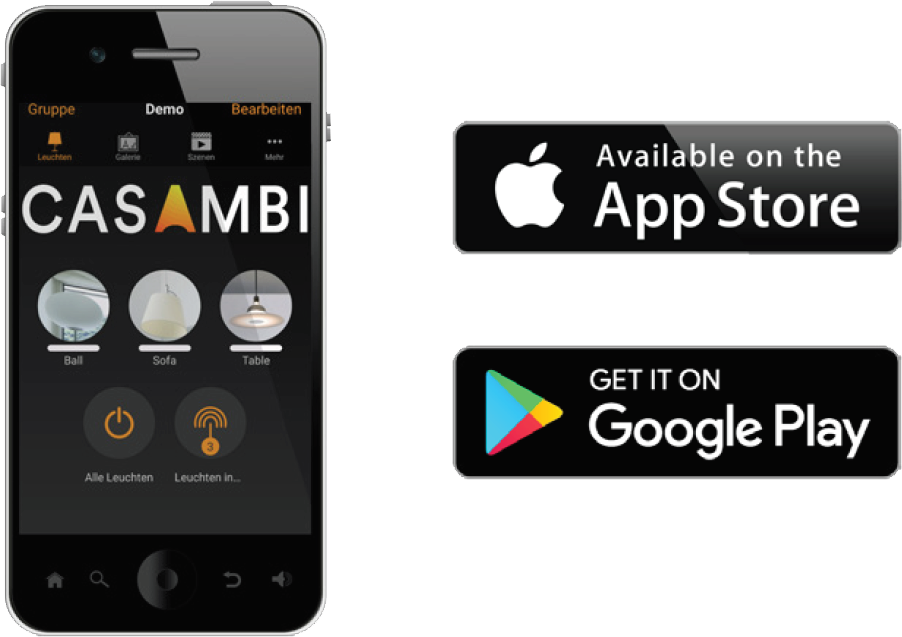

Casambi APP
